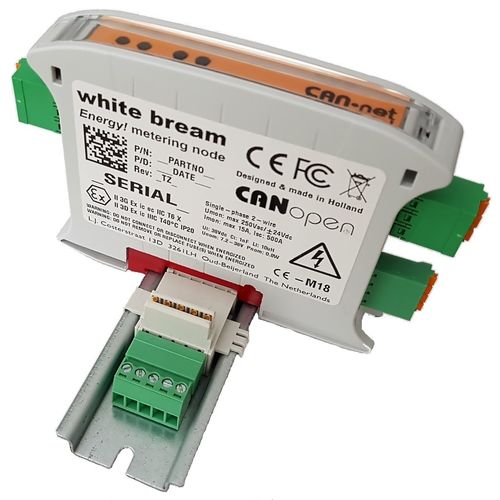

Electric energy meter

This 'Energy!' node enables monitoring of AC mains power or DC power up to 15A. Additionally, this node incorporates a mains relay so that downstream devices can be shutdown or given a low-level reset. Use this device to monitor devices and machinery to detect increased power consumption due to wear and tear. Or integrate the devices with a payment portal for metered power connections with cut-off capability upon excess current or kWh budget exceeded. Functionality Measure voltage, current, power, frequency, apparent power (VA) & cos φ Supports bi-directional energy measurement Non-volatile and resettable kWh counters for both energy directions Programmable min/max cut-off limits for most parameters CANopen® fieldbus, energy measurement device profile CiA 458 + profile for generic I/O devices CiA 401 Possibility for branding or custom firmware with specific behaviour DIN-mount energy metering node Network functions (via our gateway) Stream energy measurements via JSON View power levels directly via HTML, no cloud needed Logging to micro-SD card Node ID assigned via serial number Remote configuration & firmware update Specifications Measurement range 0-300VAC or 380VDC, ±15A Relay rating 250VAC/24VDC 16A (disabled when DC voltage exceeded) Fuse rating 250VAC/125VDC 15A HRC Mains galvanic isolated from CAN-bus; >500V isolation, 5kV surge Bi-stable relay for output switching CANopen® device profile for energy measurment device (CiA 458 + manufacturer specific entries to set limits for automatic relay control) CANopen® profile for I/O devices (CiA 401) to control the relay directly Supports LSS node ID assignment and Fastscan (CiA 305) Supports automatic bitrate detecti
