DIN rail humidity and temperature sensor

USBCANopenwireless

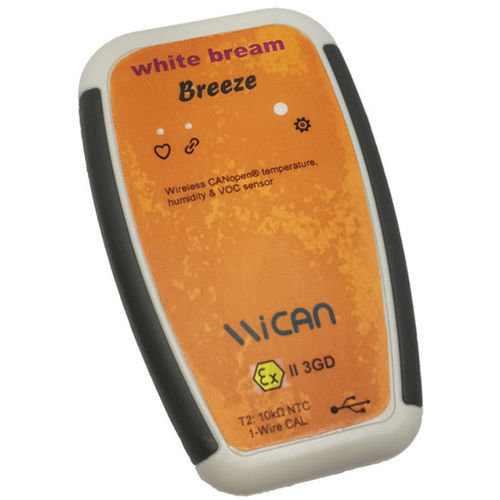

This wireless version of the 'Breeze' ambient monitoring sensor node enables measurement of temperature, humidity and so-called 'VOC' or volatile organic compounds. It connects via a WiCAN bridge device, and can do so together with over 100 other WiCAN slave nodes. This solution enables temporary or very dynamic measurements while staying compatible with the rest of the CANopen network. Use this device to monitor climate across the factory floor. Or to monitor temperatures in constrained areas that house power circuits. Not so much as a specific safety measure, but rather as an early warning system. Optional special cases allow for neat storage, transportation of a collection of WiCAN sensor devices. These cases contain integrated Qi chargers to allow for hassle-free charging of the devices. Functionality Measure temperature, humidity and VOC values CANopen® fieldbus, generic I/O module profile CiA 401 Possibility for branding or custom firmware with specific behaviour Specifications Measure VOC (ethanol) 0-1000ppm with accuracy ±15% between 0.3ppm and 30ppm Update rate defaults to 1×/second. Changeable via TPDO SYNC-type configuration, or to CiA-401-style event triggers IEEE 802.15.4 protocol using XBee technology with integrated antenna Globally approved 2.4GHz ISM band Maximum wireless bandwidth ~100kbps Distance 60m indoors, up to 1200m outdoors CANopen® device profile for generic I/O modules (CiA 401) CANopen SYNC-message PLL to reduce radio latency jitter effects Supports LSS node ID assignment and Fastscan (CiA 305) Up-to-date EDS file generated by and downloadable from the device
