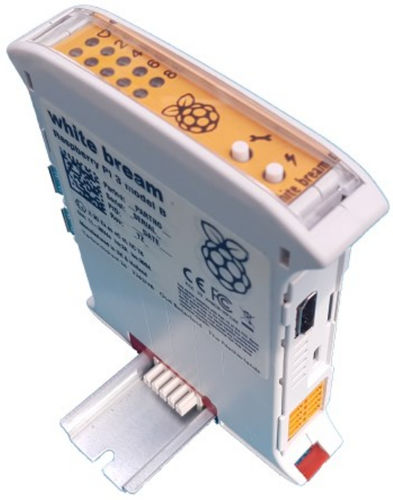

PICe interface board 69-109-301

CANopenCANRS-232

This module integrates the Raspberry Pi 3 with a rugged power supply, various real-world inputs and outputs and a shutdown + watchdog circuit. All ready to use in a DIN-rail mounted enclosure with convenient T-Bus connection. It is ideally suited for industrial applications involving CANopen or DeviceNet. Specifications: Raspberry Pi 3 model B+ (included with 69-109-30X) 12-36V power supply 5V/4A Active 'eFuse' + 2.5A traditional backup fuse CAN-bus and RS232 interfaces, 36V ruggedized 4 Analog inputs with 61.44V analog range 4 Low-side protected outputs, IDC=1.2A, VDS=60V, RDS=500mΩ Soft-power control and system watchdog Real-time Clock (RTC) and battery backup 1Mbit SRAM Bi-color LED indicators for power, watchdog and 8× general purpose, the latter controlled via an 16-bit I²C I/O expander 2× Front panel buttons, one of which doubles as soft power on 2× 10-way 3.81mm spring terminals block for GPIO 5 terminal pins wired to internal 0.1″ headers DIN rail enclosure 101x119.5mm, width 22.5mm T-Bus power & CAN connection (DIN socket connector included) ATEX enhanced safety 'ec' (IEC 60079-7) and increased safety 'nA' (IEC 60079-15) Description: The T-Bus system provides a neat and convenient method of connecting multiple DIN-rail mounted device to power and a CAN-bus data network. However, this is not mandatory since this Raspberry Pi module also has provisions for those signals on regular terminal blocks on the side of the enclosure.
