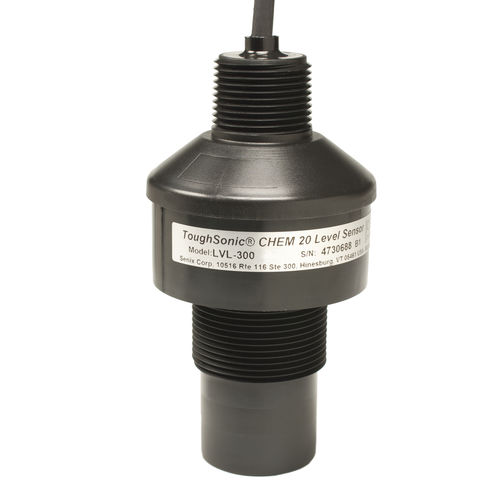

Ultrasonic level sensor ToughSonic Chem 20
for fuelfuel tankcompact

Ultrasonic level sensor - ToughSonic Chem 20 - Whitman Controls Corporation - for fuel / fuel tank / compact
Ultrasonic level sensor - ToughSonic Chem 20 - Whitman Controls Corporation - for fuel / fuel tank / compact
Add to favorites
Compare this product


Characteristics

Technology
ultrasonic
Medium
for fuel
Applications
fuel tank
Other characteristics
compact, rugged, chemical-resistant
Level range

Min.: 0 m
(0'00" )

Max.: 6.1 m
(20'00" )

Process temperature

Min.: -40 °C
(-40 °F)

Max.: 70 °C
(158 °F)

Description

The Toughsonic Chem Ultrasonic Sensors are the more rugged version of the Toughsonic General purpose line, suitable for use in diesel fuels and chemical level applications in closed or open tanks. These durable, compact ultrasonic level sensors measure a wide variety of liquids from diesel fuel in rail locomotives to chemcial tanks in the paper and food processing industries. The Toughsonic Chem 20 sensor provides non-contact measurements at distances up to 20 feet (6.1m), with an optimum range of 8 to 156 inches (200mm to 4m). Heavy duty electronics are epoxy potted into a polyvinylidene fluroride (PVDF) housing that physically isolates the transducer and electronics from chemicals and can withstand exposure to both acids and bases. The Chem sensors are used both indoors and out, and in some of the harshest factory environments. They are also suitable in liquid level applications where chemical resistance is not a neccesity. Maximum Range: 20 feet (6.1m) Optimum Range: 8 inches - 156 inches (200mm to 4m) Housing: Injection molded, chemically resistant Polyvinylidene fluoride (PVDF) Mounting: Top mount: 1" NPT, Bottom mount: 1.5" Straight thread (fits NPT or BSP) Outputs: 5 + serial data Operating Temperature: -40 to +158°F (-40 to +70°C) WhitmanVIEW PC Software is included at no extra charge, runs on a windows PC and connects to sensors via a serial data port.
