CNC turning center LV1400
vertical2-axis12 tools

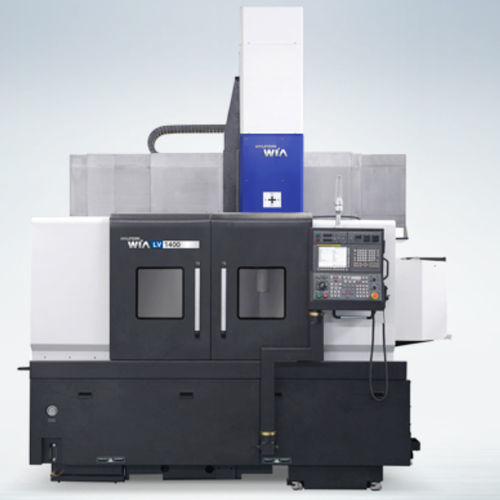

CNC turning center - LV1400 - WIA - vertical / 2-axis / 12 tools
CNC turning center - LV1400 - WIA - vertical / 2-axis / 12 tools
CNC turning center - LV1400 - WIA - vertical / 2-axis / 12 tools - image - 2
CNC turning center - LV1400 - WIA - vertical / 2-axis / 12 tools - image - 3
CNC turning center - LV1400 - WIA - vertical / 2-axis / 12 tools - image - 4
CNC turning center - LV1400 - WIA - vertical / 2-axis / 12 tools - image - 5
CNC turning center - LV1400 - WIA - vertical / 2-axis / 12 tools - image - 6
CNC turning center - LV1400 - WIA - vertical / 2-axis / 12 tools - image - 7
CNC turning center - LV1400 - WIA - vertical / 2-axis / 12 tools - image - 8
Add to favorites
Compare this product


Characteristics

Control type
CNC
Spindle orientation
vertical
Number of axes
2-axis
Number of tool stations
12 tools
Applications
heavy-duty
Performance
high-precision, high-performance, high-rigidity
Diameter

1,400 mm
(55.12 in)

Spindle speed

492 rpm
(3,091.327 rad.min-1)

Maximum part length

850 mm
(33 in)

Rapids on X

12,000 mm/min
(8 in/s)

Rapids on Z

12,000 mm/min
(8 in/s)

Nominal power

30 kW, 37 kW
(40.8 hp, 50.3 hp)

Maximum torque

6,515 Nm, 8,035 Nm
(4,805 ft.lb, 5,926 ft.lb)

Description

Strengthened heavy-duty cutting ability with 2-step geared drive for tables Main spindle designed with cross roller bearing and box guideway in all axes bring rigidity Highly rigid table structure for heavy load Linear scale on all axes as standard
