3-axis CNC machining center HS5000 II
horizontal60 toolshigh-speed

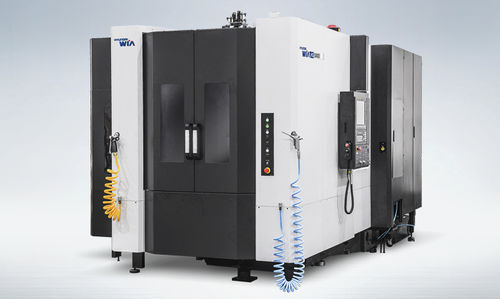

3-axis CNC machining center - HS5000 II - WIA - horizontal / 60 tools / high-speed
3-axis CNC machining center - HS5000 II - WIA - horizontal / 60 tools / high-speed
3-axis CNC machining center - HS5000 II - WIA - horizontal / 60 tools / high-speed - image - 2
3-axis CNC machining center - HS5000 II - WIA - horizontal / 60 tools / high-speed - image - 3
3-axis CNC machining center - HS5000 II - WIA - horizontal / 60 tools / high-speed - image - 4
3-axis CNC machining center - HS5000 II - WIA - horizontal / 60 tools / high-speed - image - 5
3-axis CNC machining center - HS5000 II - WIA - horizontal / 60 tools / high-speed - image - 6
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
horizontal
Number of tool stations
60 tools
Other characteristics
high-speed, high-performance, high-productivity, high-rigidity, high-precision
X travel

730 mm
(28.74 in)

Y travel

730 mm
(28.74 in)

Z travel

880 mm
(34.65 in)

Rotational speed

15,000 rpm
(94,248 rad.min-1)

Power

18.5 kW, 22 kW, 30 kW, 37 kW
(25.15 hp, 29.91 hp, 40.79 hp, 50.31 hp)

Work feed X-axis

60,000 mm/min
(39 in/s)

Work feed Y-axis

60,000 mm/min
(39 in/s)

Work feed Z-axis

60,000 mm/min
(39 in/s)

Tool-changing time

2.6 s

Description

Horizontal Machining Center HS5000 II, designed by Hyundai WIA with years of expertise and the latest technology, provides high speed, high performance and maximum productivity. State-of-the-Art Mechanism Design, High-Precision Sructure Ball screw shaft cooling system applied Large dia. Ø50 mm (2″) ball screw applied Ring type magazine standard application Best-in-class tool change time (c-c) : 2.6 sec 15″ Large Monitor Applied The HS5000 II has a 15″ large monitor for enhanced visibility. In particular, we can create more convenient use conditions by improving the operating environment such as program setup and simulation through a large screen. 3-point support bed structure The 3-point support bed can only be achieved with sufficient rigidity of the bed, and it is an indicator of a high rigidity bed. During the initial installation, it is easy to install by leveling only 3 parts of the bed, and even when maintenance is required, the maintenance capability has been greatly improved with easy leveling compared to the previous version..
