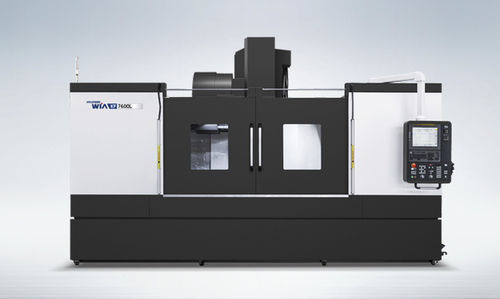

3-axis CNC machining center KF7600LverticalBT 40heavy-duty
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40
- Applications
- heavy-duty
- Other characteristics
- high-speed, high-rigidity, wide
- X travel
83 in
- Y travel
30 in
- Z travel
25 in
- Rotational speed
8,000 rpm
(50,265 rad.min-1)- Power
11 kW, 15 kW, 18.5 kW
(14.96 hp, 20.39 hp, 25.15 hp)- Table load capacity
1,800 kg
(3,968 lb)- Tool weight (max)
8 kg
(17.6 lb)- Tool-changing time
3.7 s
Description
KF7600L, developed by applying the accumulated know-how and the latest technology of Hyundai WIA, is a next-generation machine tool optimized for processing products with long material lengths through the application of a large and wide table.
Large table application for machining long parts
Wide structure of 2,100mm (82.7″) X-axis
High rigidity with Y-axis 4way design
Rapid traverse rate (X/Y/Z) : 30/30/24 m/min
High speed/High rigidity LM guide in all axes
Securing rigidity by applying 3-row ball screw support bearings
2 way interior screw chip conveyor (Std.)
Bed flushing coolant, Upper-type chip conveyor standard application
