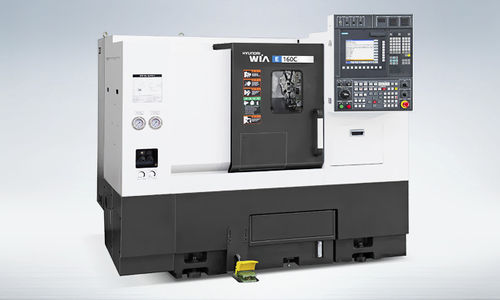

CNC turning center E160C2-axis10 toolsbelt drive
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Number of tool stations
- 10 tools
- Drive system
- belt drive
- Performance
- high-productivity, high-performance, high-rigidity
- Other characteristics
- compact
- Diameter
280 mm
(11.02 in)- Spindle speed
4,000 rpm
(25,132.741 rad.min-1)- Maximum part length
280 mm
(11 in)- Axe X
165 mm
(6 in)- Axe Z
330 mm
(13 in)- Rapids on X
30,000 mm/min
(20 in/s)- Rapids on Z
30,000 mm/min
(20 in/s)- Nominal power
7.5 kW, 11 kW
(10.2 hp, 15 hp)- Maximum torque
64 Nm, 126 Nm
(47 ft.lb, 93 ft.lb)- Coolant capacity
130 l
(34 gal)- Overall lenght
1,940 mm
(76 in)- Overall width
1,660 mm
(65 in)- Overall height
1,602 mm
(63 in)- Weight
2,500 kg
(5,512 lb)
Description
Least heat distortion, the most stabilized unit structure
Environmental friendly, separate coolant and lubrication design
Ergonomic design allows convenient access to chuck and tool
