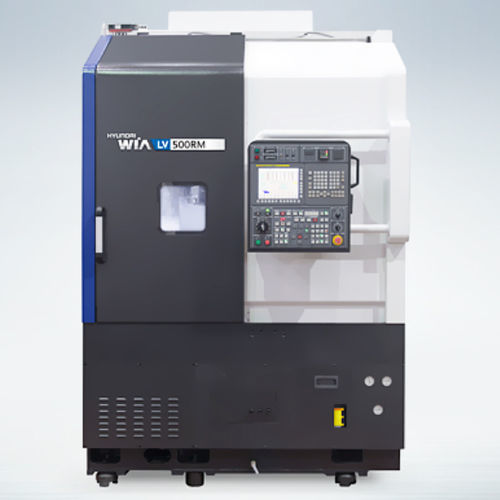

CNC turning center LV500 series vertical2-axis12 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- vertical
- Number of axes
- 2-axis
- Number of tool stations
- 12 tools
- Drive system
- belt drive
- Performance
- high-precision, high-performance, powerful, high-rigidity
- Diameter
550 mm
(21.65 in)- Spindle speed
2,000 rpm
(12,566.371 rad.min-1)- Maximum part length
600 mm
(24 in)- Axe X
325 mm
(13 in)- Axe Z
625 mm
(25 in)- Rapids on X
20,000 mm/min
(13 in/s)- Rapids on Z
18,000 mm/min
(12 in/s)- Nominal power
18.5 kW, 22 kW
(25.2 hp, 29.9 hp)- Maximum torque
693 Nm, 824 Nm
(511 ft.lb, 608 ft.lb)
Description
Stable structure of the main spindle of powerful heavy cutting type (Loading & clamping structure taking advantage of the Spindle weight)
2-step chuck pressure mechanism adopted to minimize material deformation
Various peripheral equipment can be used for rational machining
All-in-one machine structure incorporating power and oil supply functions in one body
Space design taking into account smooth ship treatment
“Right” and “Left” structure for the formation of rational automation
