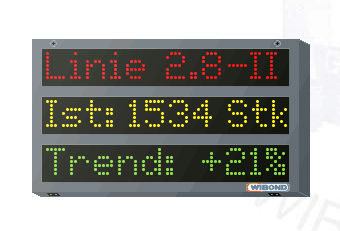

Alphanumeric display

dot-matrix10 mm pitchPROFIBUS

The WIBOND text display provides the ideal conditions for displaying texts and numbers: Font height: from 38mm to 200mm You can calculate the required lettering height in Reading distance. Display width: any The display width is based on the lettering height and the number of characters. Digit height: any The display height is based on the lettering height and the number of characters. pixel size: 3 mm, 5 mm or 10 mm In cost-effectiveness the WIBOND team recommends the optimal pixel diameter. Interface: Ethernet, serial, Profibus, Interbus, PROFINET, analogue, pulse, BCD, wireless etc In WIBOND large display interface, you will find the most commonly available control possibilities. Other characteristics: Luminous paint: red, gren, yellow or multicoloured Design: single, double or multiple-sided Fastening: wall, ceiling or to base Supply voltage: 100 to 240 VAC or 24 VDC Protection class: IP00 to IP67 Font sizes: up to 4 Fonts: up to 5 Display modes: up to 6 Character set: in accordance with ISO/IEC 8859 Screens: up to 4 freely definable Fields: up to 8 freely definable, per screen Paint finish: RAL7015, slate grey
