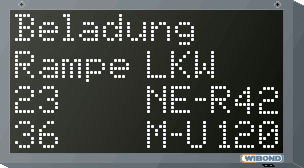

Alphanumeric display

dot-matrixlarge-formatinformation

Features Font size: from 60 mm to 280 mm You can calculate the required lettering height in reading distance. Display width: any The display width is based on the font size and the number of characters. Display height: any The display height is based on the font size and the number of lines. Interface: Ethernet, WLAN, ProfiNet, Profibus, serial RS485, RS422, RS232, wireless .... WIBOND offers all common control possibilities for the large displays. Luminous color: red, green, yellow, white or multicolored Design: single, double or multiple-sided Mounting: wall, ceiling or to base Supply voltage: 100 to 240 VAC or 24 VDC Protection class: IP00 to IP67 Font sizes: up to 11 Fonts: up to 5 Presentation mode: up to 7 Character set: according to ISO/IEC 8859 Templates: up to 4 freely definable Fields: up to 8 freely definable, per template Paint finish: RAL7015, slate grey
