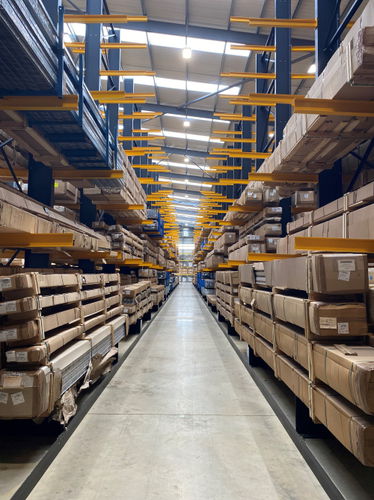

Cantilever rack system

adjustablefor heavy loadsfor pipe

Wickens Cantilever Racking offers a cost-effective and safe solution for storing various types of long and heavy products. An open-fronted system allows storing infinite and varying length items. Manufactured in the UK, our Cantilever Rack System uprights and bases are constructed from hot-rolled structural steel sections, which make them very robust and able to withstand the rigours of the most arduous industrial environments. FEATURES: • - Rack heights up to 10m to carry up to 30 tonnes • - Vertically adjustable arms on a standard pitch of 150mm (others available on request) • - Painted any colour, or hot-dipped galvanised finish for external applications • - Arm lengths and capacities to suit your requirements • - Various arm section material profiles OPTIONS: • - Single or double sided • - Canopies for external storage • - Removable retaining pins or welded end stops • - Rack Clad Buildings • - Arm end ties (left to right supports) • - Plastic arm protection to protect the product from corrosion or damage • - Tyre guards • - Steel or timber decks • - Head guards DESIGn: • - All products comply with current British and CE marking standards • - Minimum Safety Factor of 2.5 based on ultimate tensile strength • - Arm deflection limited to 1/180th of length • - Maximum allowable weld stress of 115N/mm2 • - Upright deflection limited to 1/120th of height or 50mm, whichever is less IDEAL FOR STORING: • - Aluminium sheet and plate • - Heavy pipes or tubes • - Timber packs • - Scrap vehicles • - Steel sections • - Raw materials • - Extrusion • - Panels • - Concrete & sheet lintels • - Worktops & laminates
