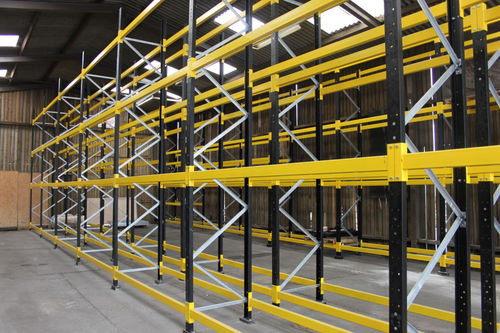

Pallet rack system

storage warehouseadjustablefor tools

Made from hot-rolled structural steel sections, Structural Pallet Racking is a more robust alternative to conventional pallet racking. Structural Pallet Racks are more resistant to forklift truck damage and are generally more durable when used in an external application. Depending on the product dimensions and weight, we will advise whether Structural Pallet Racking or Heavy Duty Racking is more suitable for your storage needs. Manufactured in the UK and in compliance with current British and CE marking standards, our Structural Pallet Racks have a bespoke design and are manufactured to suit every customer’s particular requirements. FEATURES: • - Various rack heights up to 5 metres • - 15,000kgs maximum frame load • - 3,000kgs UDL maximum load per beam level • - Maximum clear entry (left to right) of 3.9 metres • - Maximum rack depth of 1.1 metres • - Vertically adjustable beams on a standard pitch of 100mm • - Painted in any colour or galvanised for external applications OPTIONS: • - Roof and cladding available for external storage • - Steel or timber decks • - Pallet support bars • - Fitted or adjustable fork entry bars • - Chocks for storing drums or coils • - Back stops • - Guide Rail Systems available for additional protection from forklift damage TYPICAL APPLICATIONS: • - Warehouses • - Timber yards • - Builder’s Merchants yards • - Manufacturing facilities • - Industrial freezers and chillers IDEAL FOR STORING: • - Boxed goods • - Tooling • - Palletised items • - Lightweight timber
