DIN rail-mounted terminal block fasis WTP
push-incompact

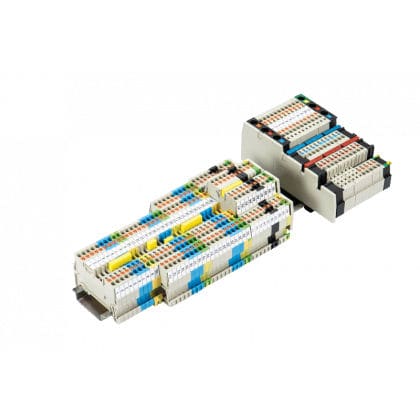

DIN rail-mounted terminal block - fasis WTP - WIELAND ELECTRIC - push-in / compact
DIN rail-mounted terminal block - fasis WTP - WIELAND ELECTRIC - push-in / compact
DIN rail-mounted terminal block - fasis WTP - WIELAND ELECTRIC - push-in / compact - image - 2
Add to favorites
Compare this product


Characteristics

Mounting
DIN rail-mounted
Connection
push-in
Other characteristics
compact
Cross-section

Max.: 10 mm²
(0.02 in²)

Min.: 0 mm²
(0 in²)

Current

Max.: 57 A

Min.: 0 A

Nominal voltage

Max.: 1,000 V

Min.: 0 V

Description

fasis WTP – our DIN rail terminal blocks with push-in connection. The series cleverly combines maximum efficiency with minimum size. The fasis WTP tool-free push-in connection technology is based on a smart holistic concept. It is designed for different wire cross-sections and has extensive accessories for a wide variety of extensions. MAXIMUM EFFICIENCY The fasis WTP DIN rail terminal blocks boast the following: Quick wiring with push-in Simply push in wires – done! Tool-free wiring Easy potential distribution Two-row, plug-in jumper channel Efficient use of space in control cabinet Required space of only 3.5 mm / DIN rail terminal block Efficient use of space with Wieland multi-tier terminals – only 1.75 mm / signal Required space for 100 signal passes: only 0.175 mm Safe handling With integrated push-button No contact with live parts Vibration-proof spring-cage technology
