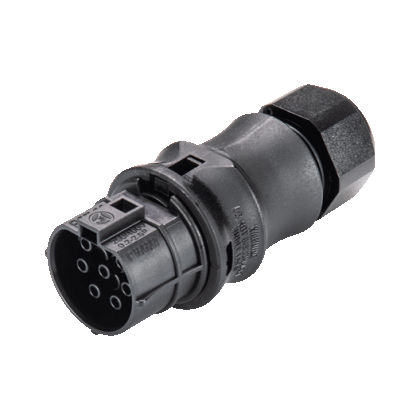

Electrical power supply connector RST® CLASSIC
DINround4-pole

electrical power supply connector
electrical power supply connector
electrical power supply connector
Add to favorites
Compare this product


Characteristics

Type
electrical power supply
Format
DIN
Shape
round
Electrical characteristics
4-pole, 5-pole, 2-pole, 6-pole, 3-pole
Material
polyamide, brass
Product applications
cable
Protection class
IP66, IP68
Other characteristics
modular, halogen-free
Primary current

20 A, 25 A, 32 A

Voltage

250 V, 400 V, 600 V

Operating temperature

Max.: 100 °C
(212 °F)

Min.: -40 °C
(-40 °F)

Description

The RST® CLASSIC connectors are the all-rounders with the most extensive portfolio. Available in 2-pole to 7-pole models. With its modular design, the RST® Classic series offers the perfect solution for any application. It enables a comprehensive network of electrical connection technology components, all prefabricated and tested in the factory. The system is tailored to the requirements of a modern electrical installation. The 6-pole to 7-pole connectors are optionally available as barrier seal models, this prevents any spread of moisture through the cable system. The huge flexibility of the system as well as its quick and safe assembly significantly increase the operational readiness of plants.
