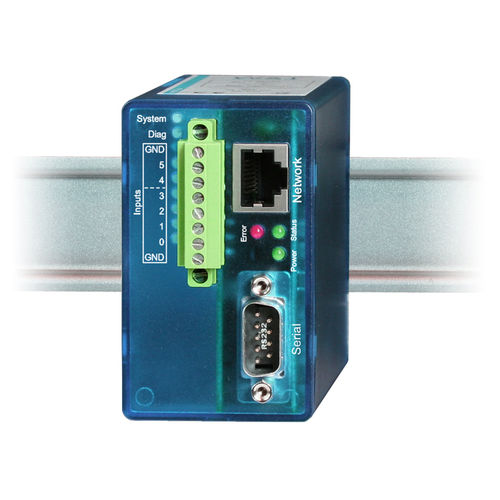

Pulse counter 57652

digitalelectronic

Web-based Pulse count acquisition with reporting, operation from the browser and data logging. Count pulses from up to six signal sources. Send event- or time-triggered reports with information about the current counter states by FTP or by mail for example. The browser-based operating software for the device’s own Web server allows you to always keep the counter states in view and read out the built-in data logger for analysis and archiving purposes. This Smart Meter means nothing will escape your attention! Interfaces: Ethernet 10/100BaseT autosensing, RJ45 Galvanic isolation between the ports Isolation voltage min. 1000V between digital inputs and network Management and connectivity: NEW: Use the Web-Counter as an hours of operation counter Web-based management Configuration of the system parameters Definition of reports for counter state reporting 12 freely configurable reports Triggers: Each digital signal generator (input signal), counter states or time-triggered Reporting: E-Mail, SNMP Trap, UDP- and TCP Client, Syslog Messages, FTP 6 digital industry-standard inputs as signal input Type 1, current sinking in accordance with IEC 1131-2 galvanically isolated in 2 groups Polarity reversal protected Counter function (32-bit) Supports S0 pulse generators Event storage in internal data logger 8MB non-volatile memory (approx. 1,000,000 counter events) Consistent recording of data records using battery-backed clock Recording of input and counter states Changed counter value saved every 100ms
