- RS485 isolator
- Wiesemann & Theis

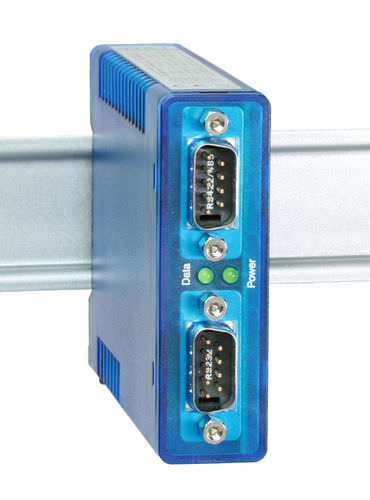

Galvanic isolator 66201RS485RS422/RS485power
Add to favorites
Compare this product
Characteristics
- Type
- galvanic, RS485, RS422/RS485
- Electrical characteristics
- power, voltage
Description
Serial Isolator for the control cabinet
The Isolator model 66201 enables galvanically isolated connection between RS422 devices and RS485 bus systems
Interfaces:
2x RS422/RS485
9-pin Sub-D connector
Galvanic isolation between the ports
Isolation voltage 1kV DC
Management and Connectivity:
Automatic control in RS485 operation
No re-configuration of transmission parameters required
High transmission speeds of up to 3 Mbaud
Power supply:
External
12V-24V AC/DC via plug-in screw terminal
Galvanically isolated power connection
Do you need overvoltage protection? - See Isolator 66203
Standards & more
Conforms to standards both in office and industrial environments:
High noise resistance for industrial environments
Low noise emission for residential and business areas
