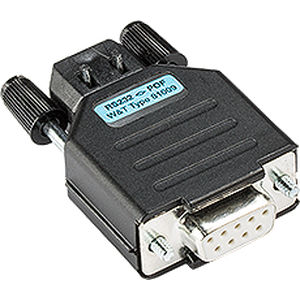

Signal converter 81009

serialfiber opticsoffice

Non-radiating and insensitive to noise The model 81009 Interface transmits serial RS232 data via plastic duplex fibers over a distance of up to 80 meters. The converter powers itself from the serial port and so usually requires no additional power supply. nterfaces: RS232 Interface 9-pin SUB-D female, ready to connect to a PC Fiber optics interface Direct connection of the fiber optic cable without a connector Alternate names: POF (polymer optical fiber, plastic optical fiber) Management and connectivity: Transmission length 5 to 80 meters. Distances < 5 meters are possible using model 81029. The interface is very easy to install: Cut the fiber-optic cable with a sharp knife at right angles. Insert into patented adapter of the W&T interface. Plug the adapter into the PC. That’s it! No re-configuration of transmission parameters required 100% protection against interfering radiation Electrical isolation Lightning protection
