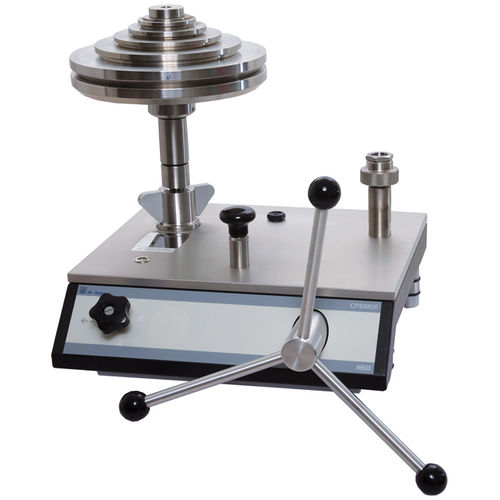

Hydraulic deadweight tester CPB5800

Reference instrument for factory and calibration laboratories for the testing, adjustment and calibration of pressure measuring instruments Complete, stand-alone system, also suitable for on-site use Special Features Total measurement uncertainty to 0.006 % of reading Extremely flexible instrument with a wide range of single and dual-range piston-cylinder systems Dual-range piston-cylinder systems with fully automated changing between ranges Factory calibration includes traceability to national standards, as standard, with UKAS calibration possible as an option Fast and safe replacement of the piston-cylinder system via patented ConTect quick-release system as an option Description Proven primary standard Dead weight testers are the most accurate instruments available on the market for the calibration of electronic or mechanical pressure measuring instruments. The direct measurement of the pressure (p = F/A), as well as the use of high-quality materials enable a very small measurement uncertainty, in conjunction with an excellent long-term stability. It has therefore been used for years in factory and calibration laboratories in industry, national institutes and research laboratories. Stand-alone operation Due to its integrated pressure generation and the pure mechanical measuring principle, the model CPB5800 dead weight tester is ideal for on-site use for maintenance and service. Basic principle Pressure is defined as the quotient of force and area. The core component of the model CPB5800 dead weight tester is therefore a very precisely-manufactured piston-cylinder system,
