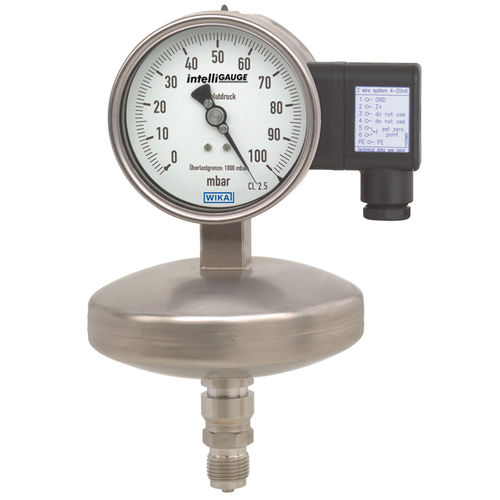

Absolute pressure gauge APGT43.1 series

dialthreadedG 1/2

Acquisition and display of processes Pressure measurement independent of fluctuations in the atmospheric pressure Monitoring of vacuum pumps and packing machines Measurement of condensation pressures and determination of vapour pressure in liquids Special Features No configuration necessary due to “plug-and-play” Scale ranges from 0 … 25 mbar absolute pressure Easy-to-read analogue display with nominal sizes 100 and 160 High overload safety, long service life due to metallic media chamber sealing Media chamber protected against unauthorised access Description The model APGT43 intelliGAUGE® (patent, property right: e.g. DE 202007019025) can be used wherever pressure measurement has to be independent of fluctuations in the atmospheric pressure. The instrument serves for the on-site display with a simultaneous signal transmission to a central control or remote centre. The model APGT43 is based upon a model 532.54 high-quality, stainless steel pressure gauge, manufactured in accordance with DIN 16002. The intelliGAUGE® model APGT43 fulfils all safety-related requirements of the relevant standards and regulations for the on-site display of the working pressure of pressure vessels. The robust diaphragm measuring system produces a pointer rotation proportional to the pressure. An electronic angle encoder, proven in safety-critical automotive applications, determines the position of the pointer shaft – it is a non-contact sensor and therefore completely free from wear and friction. From this, the electrical output signal proportional to the pressure, e.g. 4 ... 20 mA, is produced.
