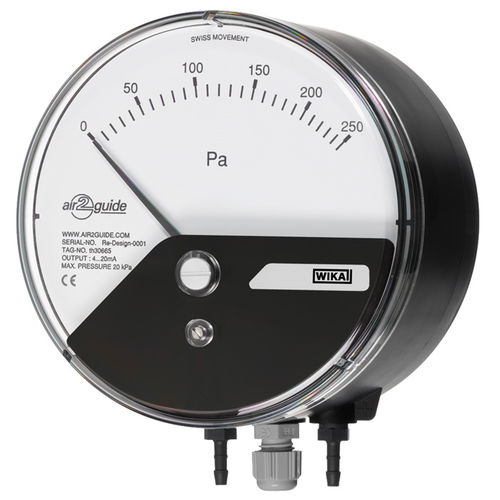

Differential pressure gauge A2G-15

dialthreadedback mount

Differential pressure monitoring for filters Pressure monitoring for ventilators Overpressure monitoring for clean rooms and also under- and overpressure monitoring for laboratories and operating rooms Special features Simple and fast mounting via threaded bezel Separated construction of measuring chamber and display area Integrated sealing element for direct mounting in a ventilation duct or instrument panel Available as a built-in or add-on version Description Electrical output signals for both measurands (DC 0 … 10 V or 4 … 20 mA) enable the direct connection to control systems or the building automation system. The separated construction of the measuring chamber and display area ensures that impurities from the process air do not settle on the back of the window. The differential pressure gauge is available in IP54 and IP65 ingress protection as well as two different mounting versions. Built-in version The built-in version with threaded bezel is notable for its fast and tool-free mounting. The built-in case features two back mount connections with a G ⅛ female thread, into which matching threaded pressure connections are screwed. Add-on version With the add-on version, the add-on case is attached with three screws and then the pressure measuring system is fitted into the case. The add-on case features two lower-mount connections with a G ⅛ female thread, into which matching threaded pressure connections are screwed. The position of each connection can be altered through 90° by rotating the add-on case.
