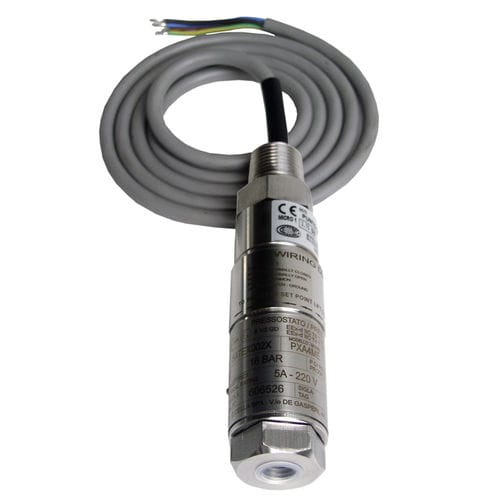

Mechanical pressure switch PXS

for liquidsfor gasstainless steel

Pressure monitoring and control of processes Safety-critical applications in general process instrumentation, especially in the chemical and petrochemical industries, oil and gas industries, power generation incl. nuclear power plants, water/wastewater industries, mining For gaseous and liquid, aggressive and highly viscous or contaminated media, also in aggressive environments For measuring locations with limited space, e.g. control panels Special features Compact and slimline design Set point repeatability of ≤ 1 % for reliable switching High switching power and large selection of contact variants and electrical connections Description These high-quality mechanical pressure switches have been developed especially for safety-critical applications. The great advantage of mechanical pressure switches is that no supply voltage is required for the switching process. In production, the switches are traced by quality assurance software at every step and subsequently are 100 % tested. Due to its compactness, the model PXS pressure switch can be installed in measurement environments with limited space. The robust switch enclosure from stainless steel 316 can withstand the rough and corrosive operating conditions of the process industry with working ranges of up to 1,000 bar. The pressure switch is fitted with micro switches, which make it possible to switch an electrical load of up to AC 250 V, 5 A directly within a repeatability of 1 % of the set point. Depending on the application, the appropriate variant for the contact version and the electrical connection can be selected; e.g.,
