Thermocouple thermometer CTR3000

resistancedigitalindustrial

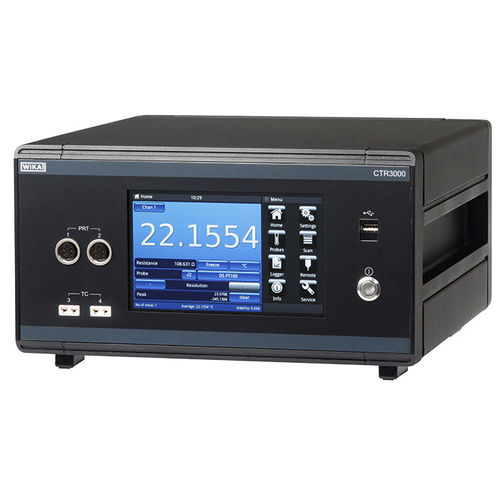

Pharmaceutical industry Industry (laboratory, workshop and production) Temperature sensor and transmitter manufacturers Calibration service companies and service industry Special features High accuracy Innovative and intuitive user interface Versatile applications by measuring thermocouples and resistance thermometers Logger and scan functions Up to 44 channels possible Description Application The model CTR3000 precision thermometer provides a complete measurement and control interface for users wishing to make high-accuracy temperature measurements or calibrate thermometers. It supports a wide range of thermometer types including 25 Ω SPRTs, 100 Ω PRTs, thermistors and thermocouples. The CTR3000 is a high-accuracy instrument designed for laboratory and industrial temperature measurement and calibration applications. Functionality The instrument will operate with all 3- and 4-wire (S)PRTs (25 Ω, 100 Ω) platinum resistance thermometers as well as most standard international thermocouple types and NTC thermistors. The following temperature measurement units are selectable: °C, °F, K. Base measuring units mV and Ω are also displayed. The temperature values will be calculated through common conversion of the base measurement. Due to the wide range of this instrument it makes individual instruments needless and makes the calibration cost-effective. Features included: Excellent and high-accuracy measurement technology for the registration of different types of thermometers Large graphic touchscreen for temperature measurement values as well as configuration settings and statistical results
