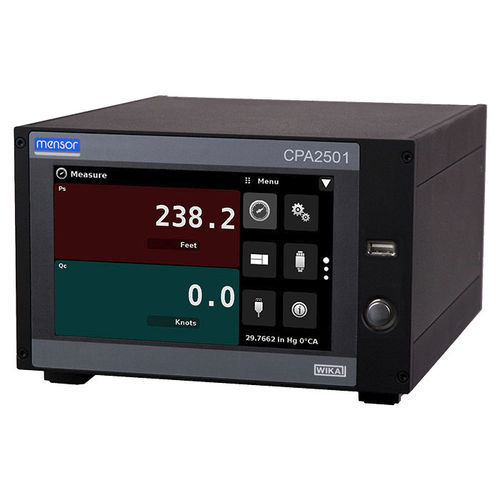

Digital pressure indicator CPA2501

laboratory

Aviation calibration labs Aviation repair stations Manufacturers of avionics equipment Manufacturers of aerospace equipment Wind tunnels Key Features Indication of altitude and airspeed and rates Ps, Pt / Qc ranges Altitude uncertainty: +/-3 ft. at sea level RVSM compliant RS-232 and ethernet standard Description Applications The CPA2501 is used in aviation and aerospace applications for calibration of altimeters and airspeed indicators, displaying altitude, airspeed, altitude rate (vertical airspeed) and airspeed rate (acceleration). Applied wherever there is a need for a high level of accuracy in an avionics indicator or calibration device. Functional Flexibility The CPA2501 can be configured with an altitude channel and an airspeed channel consisting of Ps / Pt or Ps / Qc. It can be configured as a single channel altitude / altitude rate indicator, (Ps only) a single channel airspeed / airspeed rate indicator (Qc only) or it can be a dual channel unit configured as Ps / Pt or Ps / Qc. In the Ps / Pt version the airspeed / airspeed rate channel is a calculated channel. An optional barometer can be installed for display in the front panel or as a separate channel. Pressure ranges for each channel can be specified by the customer. Guidelines for ranges are given in the pressure range section of the specifications on page 2. Versions The CPA2501 versions are as follows: Ps (altitude version) Qc (airspeed version) Ps/Qc with a virtual Pt channel Ps/Pt with a virtual Qc channel An optional barometric sensor can be added to any version.
