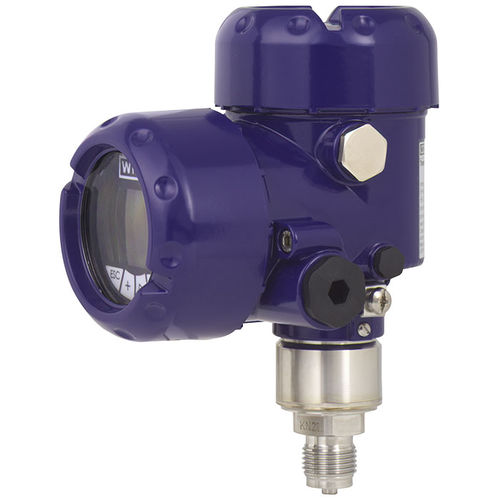

Relative pressure transmitter IPT-2 series

4-20 mAHARTProfibus

Chemical and petrochemical industries Process engineering Pharmaceutical industry Food and beverage industry Hazardous areas Special features For applications to SIL 2 (SIL 3) Welded metal measuring cell Seven different case variants Configuration via EDD and DTM (Device Type Manager) in accordance with the FDT (Field Device Tool) concept, e.g. PACTware Description With its 4 ... 20 mA, 4 ... 20 mA HART®, PROFIBUS® PA or FOUNDATION Fieldbus™ output signals, combined with either intrinsic safety or flameproof enclosure ignition protection type (in accordance with ATEX and IECEx), the model IPT-2x is ideally suited to applications with the highest demands on the measurement technology. Versatile in application the instrument can be used in almost any application. The large number of process connections and the extensive possibilities offered by the metallic measuring cell enable use in all industries. There are seven different case variants available, and thus it is possible to select a variant suited to every operating environment. The case itself can be rotated through 330° and is available in plastic, aluminium and stainless steel. An electropolished stainless steel case (316L) is available to meet the high demands of the food and pharmaceutical industries. Easy configuration and operation Service and configuration at the instrument is carried out using the optional display and operating module, which can be fitted in four positions. The operating menu has a simple and self-explanatory structure and has nine selectable languages as standard.
