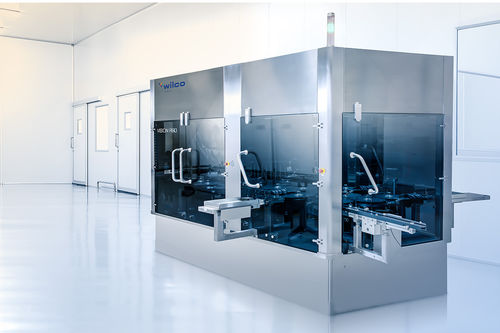

Visual inspection machine VISION CAV 600

particlevialfor the pharmaceutical industry

The automated visual inspection platform VISION CAV is designed for a customized, fully-automated inspection of particles and cosmetic defects of vials with liquid or lyophilized products. The vision machine combines solid and proven mechanical engineering according to GMP standards with the latest digital inspection technology. Container transportation system The vial transportation system was designed to gently transport the test samples through the inspection stations with the goal of reducing bubble creation and vibrations that might impact the inspection result. Cosmetic and particle inspection The cosmetic inspection stations provide container rotation of 360° checking for cracks, scratches and other defects on the container and closure. Particulates are inspected using image subtraction and corresponding algorithms. Customized configuration of camera stations High-resolution image sequences are recorded by several camera stations. Spinning profiles may be adjusted for different particle characteristics such as floating, or heavy particles. Additional camera stations allow for inspection of geometric measurements and detection of discoloration. ■ Machine design in accordance with GMP requirements ■ Protection of cameras from particles in environment ■ Vacuum gripper system for smooth vial handling ■ Up to 13 inspection stations ■ Servo-driven spinning stations for rotation of objects ■ Monitoring of critical parameters like spinning und lighting ■ Scalability of image processing units ■ Optical path covers complete format range ■ Configurable sorting module with up to 8 outlets ■ Latest standard industry vision components
