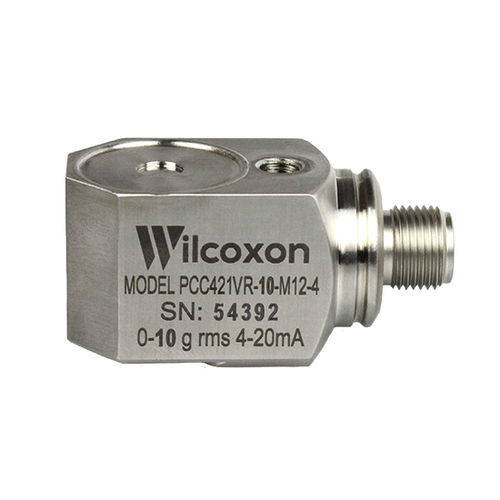

Vibration transmitter PCC421VR-10-M12-4

Vibration transmitter, 4-20 mA output proportional to RMS velocity, 1.0 in/sec full-scale measurement range, operation to 105°C, low profile with side exit 4-pin M12 connector, operates up to 105°C, the upgraded PCC42X series is smaller, lighter and lower price Vibration transmitter sensors represent vibration levels by a loop current of 4-20 mA, which can be easily integrated into existing plant control systems, such as a PLC, DCS, or SCADA system. As part of a continuous monitoring setup, 4-20 mA trend data can be easily compared against standard vibration guides to indicate general machine health. RMS velocity output Corrosion resistant Hermetically sealed ESD, overload and reverse wiring protection Sensor output - 4-20 mA Measurement unit - Velocity Detector type - RMS Full-scale range - 1.0 IPS Connector style - M12, 4-pin Connector orientation - Side exit Temperature range - -40°C to +105°C Weight - 145 grams Hazardous area approvals - Non-approved
