Power cable R6QNI-0-J9T2-64Socketshieldedtwisted pair
Add to favorites
Compare this product
Characteristics
- Type
- power
- Format
- Socket
- Protection
- shielded
- Configuration
- twisted pair
- Color of the insolation
- white
- Temperature
Max.: 104 °C
(219 °F)Min.: -45 °C
(-49 °F)- Length
64'00"
(19.5 m)
Description

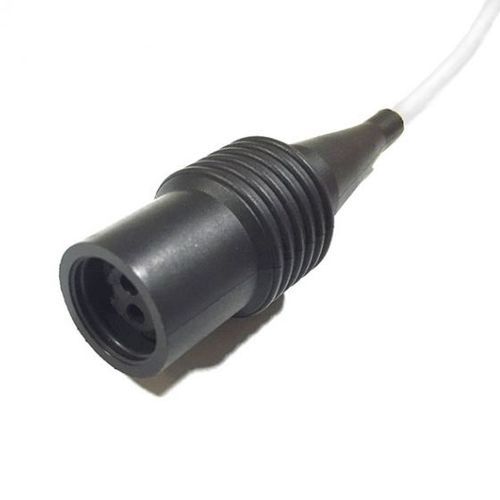

64 ft shielded twisted pair cable, 2-conductor, braided shield, white Tefzel® jacket, model 6QNI Neoprene boot connector with electrical isolation between shield and transducer housing, to blunt cut, rated to 150°C
R6QNI: Neoprene boot, 2-socket MIL-C 5015 style connector, electrical isolation between shield and transducer housing
0: to blunt cut
J9T2-64: shielded twisted pair cable, 2-conductor, braided shield, white Tefzel® jacket, rated to 150°C, 64 ft
IP rating - IP68
Connector 1 (sensor) - R6QNI (MIL-C-5015, 2-socket, high temp boot, isolated shield, radiation resistant)
Connector 2 (termination) - Blunt cut
Cable type - J9T2 (twisted shielded pair, braided shield, white Tefzel jacket)
Cable O.D. - 0.190 in
Capacitance (pF/ft) - 27 pF/ft
