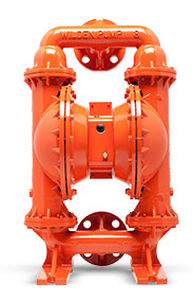

Diaphragm pump PS800®for food productsindustrialsuction
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- for food products
- Domain
- industrial
- Applications
- suction
- Material
- metal
Description
WETTED HOUSINGS
(Water Chambers and Manifolds)
Material Ship Wt
Aluminum 34 kg (75 lbs)
Alloy C 104 kg (228 lbs)
Stainless Steel 100 kg (220 lbs)
NON-WETTED HOUSINGS
Description Material
Center Section Aluminum
Air Valve Aluminum
FLOW RATE TO 704 LPM (186 GPM)
MAX PRESSURE = 8.6 BAR (125 PSI)
MAXIMUM SUCTION LIFT CAPABILITY
6.4 m (21.0’) Dry, 8.6 m (28.4’) Wet
MAXIMUM DIAMETER SOLIDS
6.4 mm (1/4”)
Catalogs
FAM-ADV-BRO
32 Pages
