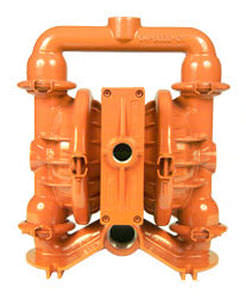

Diaphragm pump PX4
for food productsindustrialsuction

Diaphragm pump - PX4 - Wilden Pump - for food products / industrial / suction
Diaphragm pump - PX4 - Wilden Pump - for food products / industrial / suction
Add to favorites
Compare this product


Characteristics

Technology
diaphragm
Fluid
for food products
Domain
industrial
Applications
suction
Material
metal

Description

Wilden PX4 - 38 mm (1 1/2'') Metal Pump WETTED HOUSINGS (Water Chambers and Manifolds) Material Ship Wt Aluminum 21 kg (46 lbs) Cast Iron 30 kg (66 lbs) 316 Stainless Steel 28 kg (67 lbs) NON-WETTED HOUSINGS Description Material Center Section Aluminum, Stainless Steel Air Valve Aluminum, Stainless Steel FLOW RATE TO 327 LPM (87 GPM) MAX PRESSURE = 8.6 BAR (125 PSI) MAXIMUM SUCTION LIFT CAPABILITY 6.9 m (22.7') Dry, 9.3 m (30.6') Wet MAXIMUM DIAMETER SOLIDS 4.8 mm (3/16'')
