Food product pump P400 diaphragmindustrialsuction
Add to favorites
Compare this product
Characteristics
- Fluid
- for food products
- Technology
- diaphragm
- Domain
- industrial
- Applications
- suction
- Material
- metal
Description

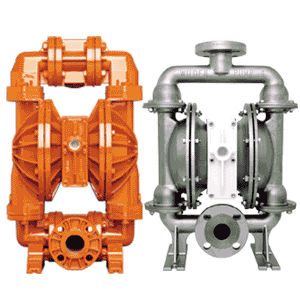

Wilden P400 - 38 mm (1 1/2") Advanced Metal Pump
FLOW RATE TO 409 LPM (108 GPM)
MAX PRESSURE = 8.6 BAR (125 PSIG)
WETTED HOUSINGS
(Liquid Chambers and Manifolds)
Material Ship Wt
Aluminum 25 kg (55 lbs)
Alloy C 38 kg (83 lbs)
Stainless Steel 35 kg (77 lbs)
NON-WETTED HOUSINGS
Description Material
Center Block Polypropylene
Air Chambers Aluminum
Air Valve Polypropylene
MAXIMUM SUCTION LIFT CAPABILITY
4.2 m (13.6') Dry
MAXIMUM DIAMETER SOLIDS
7.9 mm (5/16'')
