Food product pump T8self-primingdiaphragmindustrial
Add to favorites
Compare this product
Characteristics
- Fluid
- for food products
- Priming
- self-priming
- Technology
- diaphragm
- Domain
- industrial
- Applications
- suction
- Material
- metal
Description

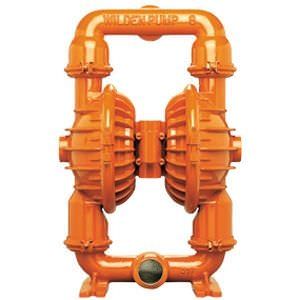

Wilden T8 - 51 mm (2'') Metal Pump
WETTED HOUSINGS
(Water Chambers and Manifolds)
Material Ship Wt
Aluminum 33 kg (72 lbs)
Cast Iron 52 kg (114 lbs)
NON-WETTED HOUSINGS
Description Material
Center Block Aluminum
Air Valve Brass
FLOW RATE TO 617 LPM (163 GPM)
MAX PRESSURE = 8.6 BAR (125 PSI)
MAXIMUM SUCTION LIFT CAPABILITY
6.4 m (21') Dry, 9.5m (31') Wet
MAXIMUM DIAMETER SOLIDS
6mm (1/4
