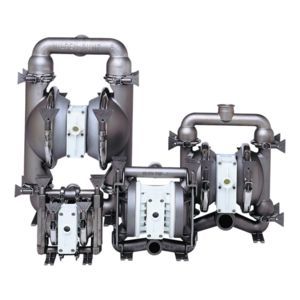

Diaphragm pump P2 Saniflo FDAfor food productsself-primingsanitary
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- for food products
- Priming
- self-priming
- Domain
- sanitary
- Applications
- suction
Description
Wilden P2 - 25 mm (1") Saniflo FDA Pump
FLOW RATE TO 170 LPM (45 GPM)
MAX PRESSURE = 8.6 BAR (125 PSI)
WETTED HOUSINGS
(Water Chambers and Manifolds)
Material Ship Wt
316 SS Stainless Steel 16.6 kg (36 lbs)
NON-WETTED HOUSINGS
Description Material
Center Block Carilon
Air Chambers Carilon
Air Valve Polypropylene Acetal
MAXIMUM SUCTION LIFT CAPABILITY
5.79 m (19') dry, 8.53 m (28') Wet
MAXIMUM DIAMETER SOLIDS
4.8mm (3/16 )
