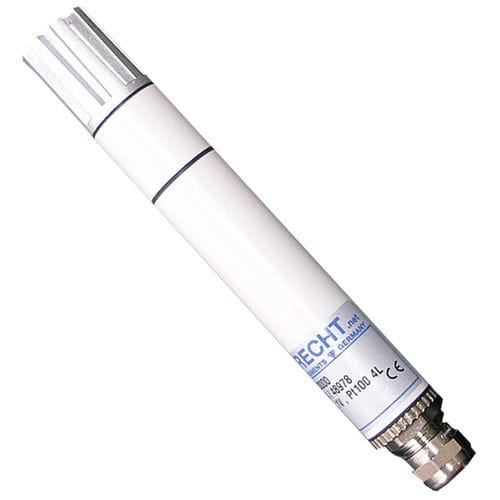

Analog humidity and temperature sensor 8093
24 Vdc12 Vdc15VDC

Analog humidity and temperature sensor - 8093 - Wilh. LAMBRECHT GmbH - 24 Vdc / 12 Vdc / 15VDC
Analog humidity and temperature sensor - 8093 - Wilh. LAMBRECHT GmbH - 24 Vdc / 12 Vdc / 15VDC
Add to favorites
Compare this product


Characteristics

Output
analog
Supply voltage
24 Vdc, 12 Vdc, 15VDC
Protection level
IP65, IP30
Other characteristics
for weather stations, compact, small
Applications
outdoor
Measuring range (%)

Min.: 0 %

Max.: 100 %

Precision

2 %

Measuring range (temperature)

Min.: -30 °C
(-22 °F)

Max.: 70 °C
(158 °F)

Accuracy (temperature)

0.2 °C
(32.36 °F)

Description

• Building technology • Traffic systems • Buoys • Energy supply and disposal systems • Environmental measure ment technology LOW POWER CONSUMPTION Aloft or at the roadside, is where this humidity-temperature sensor (8093.1) is most commonly used. The instrument is characterised by the high-quality measuring elements, robust housing, reliable membrane filter and low-current electronics. Thus the sensor (8093.1) is especially suitable for meteoro­logical outdoor measurements in very diverse application fields. • Easy installation, robust, nearly maintenance free • Low power consumption • Good dynamical behaviour • Reliable membrane filter as protection against pollutants • High long-term stability and nearly linear characteristic line
