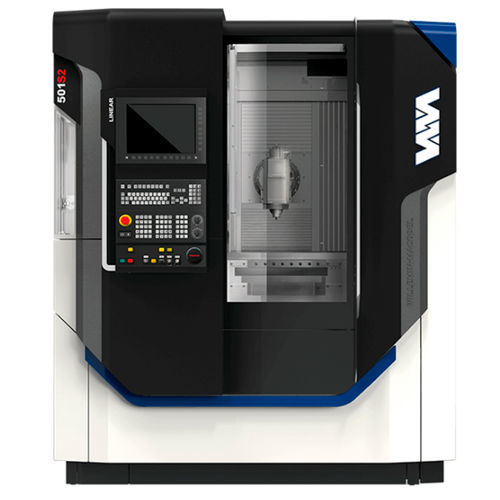

3-axis CNC machining center 501S2

4-axisverticalHSK-E40

The 501S2 is a 3- to 4-axis machining center designed to machine complex workpieces. Primarily designed for high-precision milling operations, it benefits from "full linear" technology. The linear axes are equipped with direct drive motors. Thanks to its dynamic performance and very stable temperature, the 501S2 is a highly productive machine for manufacturing high added-value parts such as watch main plates and bridges, which require great precision and premium quality surface finishes. The 501S2 machining center is equipped with a vertical powered spindle that can mill at speeds of up to 30,000 rpm (42,000 rpm as an option). It includes many customized features, including a tool magazine offering up to 96 positions, or custom-developed robotization. This makes the 501S2 a real multi-process machining center. Benefiting from the latest technological developments and Willemin-Macodel's comprehensive expertise in high-precision machining on 5 simultaneous axes, the 501S2 is perfect for cutting-edge industries such as watchmaking and high-precision mechanical sub-contracting. OTHER CHARACTERISTICS 600 x 280 mm slotted table Acceleration of X Y Z linear axes, 10 m/s2 Tool magazine with up to 96 tools Central coolant programmable up to 80 bar Footprint approx 4.2 m2
