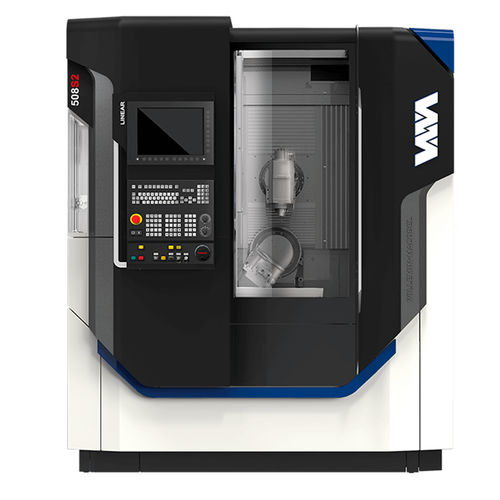

5-axis CNC machining center 508S2

6-axisverticalHSK-E40

The 508S2 is a machining center with 5 simultaneous axes designed to machine complex prismatic workpieces. It benefits from "Full Linear" technology – all the linear and rotary axes are equipped with direct drive motors. Thanks to its dynamic performance and very stable temperature, the 508S2 is a highly productive machine for manufacturing high added-value parts requiring great precision and premium quality surface finishes. The 508S2 machining center is fitted with a vertical powered spindle for milling operations at up to 42,000 rpm, and a dual rotary divider for turning operations on the C axis at up to 4000 rpm. It includes many customized features, including a tool magazine offering up to 96 positions, or custom-developed robotization. This makes the 508S2 a real multi-process machining center. Benefiting from the latest technological developments and Willemin-Macodel's comprehensive expertise in high-precision machining on 5 simultaneous axes, the 508S2 is perfect for cutting-edge industries such as watchmaking, jewelry, medical, dental, aerospace and high-precision mechanical sub-contracting. OTHER CHARACTERISTICS Turning on the C axis up to 4000 rpm High-precision direct drive dual divider, resolution 0.0001° B axis angular movement -110° to +30° B axis indexing from 0 ° - 90 ° in 0.2 sec Acceleration of X Y Z linear axes, 10 m/s2 Tool magazine with up to 96 tools Central coolant programmable up to 80 bar Footprint approx 3.8 m2
