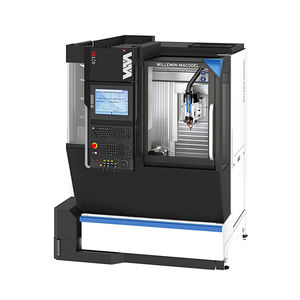

8-axis CNC machining center 408MTSverticalHSK-E 2570 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 8-axis
- Spindle orientation
- vertical
- Spindle mount
- HSK-E 25
- Number of tool stations
- 70 tools
- Other characteristics
- high-performance
- X travel
250 mm
(9.84 in)- Y travel
200 mm
(7.87 in)- Z travel
310 mm
(12.2 in)- Rotational speed
Max.: 45,000 rpm
(282,743 rad.min-1)Min.: 30,000 rpm
(188,496 rad.min-1)- Power
Max.: 15 kW
(20.39 hp)Min.: 10 kW
(13.6 hp)- Work feed X-axis
40,000 mm/min
(26 in/s)- Work feed Y-axis
40,000 mm/min
(26 in/s)- Work feed Z-axis
40,000 mm/min
(26 in/s)- Tool weight (max)
1 kg
(2.2 lb)- Tool-changing time
0.8 s
- Weight
2,100 kg
(4,629.71 lb)- Overall length
1,980 mm
(78 in)- Overall width
1,450 mm
(57.1 in)- Overall height
2,100 mm
(82.7 in)
