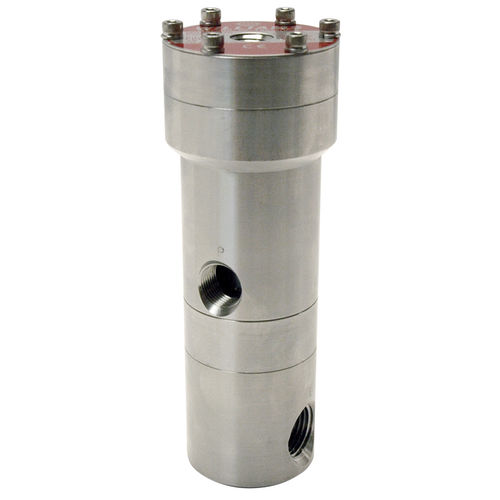

Pneumatic control relay PO4-8S

The PNEUMATIC RELAY is a pilot operated valve designed to provide the higher air or gas flow rates necessary for PNEUMATIC DRIVE CYLINDER diameters greater than 3 inches. The PNEUMATIC RELAY is actuated by the pulses produced by the CONTROLLER. A single acting PNEUMATIC RELAY is used with pumps that have return springs as illustrated to the left. The air or gas pressure is required to return the PISTON-PLUNGER ASSEMBLY on the CRP1000V800.
