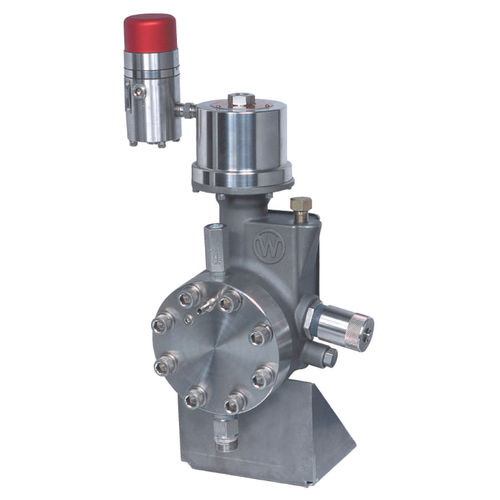

Chemical pump WILROY seriespneumaticdiaphragmstationary
Add to favorites
Compare this product
Characteristics
- Fluid
- for chemicals
- Operation
- pneumatic
- Technology
- diaphragm
- Mobility
- stationary
- Domain
- industrial, chemical
- Applications
- metering
- Other characteristics
- compact, rugged, actuated
- Flow
2 l/h, 5 l/h, 111.66965 l/h
(7.57082 us gal/h, 18.92706 us gal/h, 111.66965 us gal/h)Min.: 0.1325 l/h
(0.035 us gal/h)- Pressure
1,600 psi, 2,500 psi, 3,000 psi
- Weight
12.2 kg, 55.1 kg, 62.1 kg
(26.9 lb, 121.47 lb, 136.91 lb)
Description
WILROY Series Hydraulic Diaphragm Pump
The WILROY metering pump is a unique blend of Williams and Milton Roy pump technology
The WILROY is a pneumatic-hydraulically actuated diaphragm pump designed for high pressure chemical injection used in applications where the media needs to be isolated by a TFE diaphragm. Can be used for a variety of high-pressure process applications.
Gylon® diaphragm offers a wide range of compatibility
Cartridge Design Approach
Displacement is adjusted by a Hydraulic Bypass Design
Pressure capabilities to 3000 PSI (207 BARG)
Five sizes in two housing makes it field reconfigurable
Pneumatic controller, piston plunger and housing, and relay common with V-Series
Maintenance Free Sealed Hydraulic system
Double Diaphragm Leak-Detection Options
