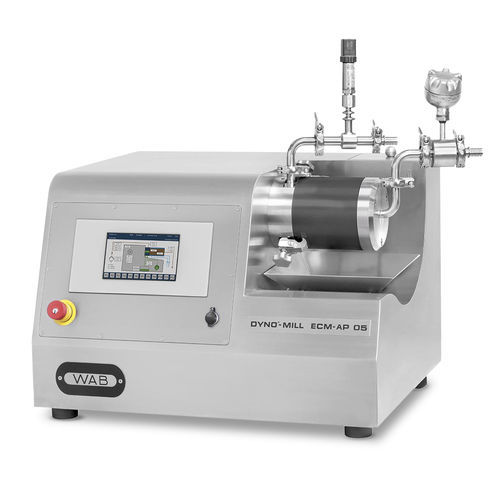

Bead agitator mill DYNO®-MILL ECM-AP 05
wetdischydraulic

bead agitator mill
bead agitator mill
Add to favorites
Compare this product


Characteristics

Technology
wet, disc, hydraulic, bead
Orientation
horizontal
Product applications
for ceramics, for metals, for battery materials, for cell disruption, for coating, for industrial paint, for ink, for inkjet
Other characteristics
laboratory, wet grinding, high-performance
Sector
for the pharmaceutical industry, for the food industry
Motor power

Max.: 132 kW
(179.47 hp)

Min.: 4 kW
(5.44 hp)

Machine length

825 mm, 1,150 mm, 1,520 mm, 1,970 mm, 2,330 mm
(32 in, 45 in, 60 in, 78 in, 92 in)

Machine width

625 mm, 760 mm, 900 mm, 1,090 mm, 1,340 mm
(25 in, 30 in, 35 in, 43 in, 53 in)

Machine height

725 mm, 1,590 mm, 1,860 mm, 2,090 mm, 2,220 mm
(29 in, 63 in, 73 in, 82 in, 87 in)

Machine weight

Max.: 140 kg
(309 lb)

Min.: 120 kg
(265 lb)

Description

The high-performance laboratory mill produces the finest and narrowest particle distributions down to the nanometer range Specially developed for the laboratory environment The high-performance laboratory agitator bead mill is ideal for developing new formulations and calculating scale-up factors with small amounts of product. It produces the finest and narrowest particle distributions down to the nanometer range and impresses with its highly efficient energy input for the most difficult dispersing and size reduction tasks. It is the scale-up model for the DYNO®-MILL ECM-AP series. The housing allows the use of a second grinding chamber with DYNO®-UNIVERSAL technology for unrivaled flexibility and cost-effectiveness in the laboratory. Functionality The grinding media separation system is characterized by a flow-optimized and guided grinding media circuit. The grinding media are guided axially over the screen surface by the deflection ring. Subsequently, the DYNO®-ACCELERATOR DSE conveys the grinding media back to the deflection ring without tearing them off. The axial guidance of the grinding media over the screen surface helps to remove coarser particles from the cross sections through which they flow and is the basis for the unique self-cleaning effect of the DYNO®-MILL ECM-AP separation system. Features • Suitability for high throughputs and highly viscous products • Availability of metallic and ceramic variants • Uniform grinding media density distribution in the grinding chamber for maximum efficiency • Efficient grinding with grinding media from ø 0.1 mm • Low energy consumption thanks to hydraulic grinding media acceleration
