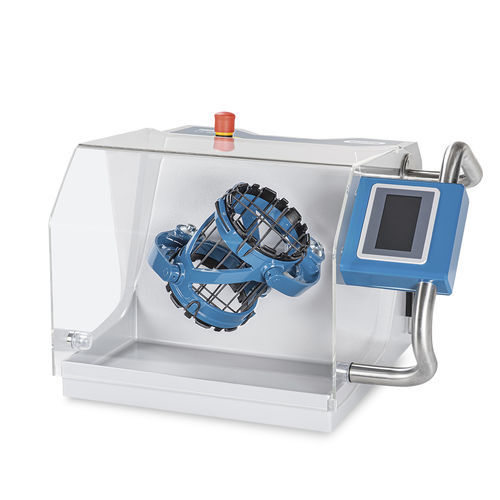

3D motion mixer TURBULA®
batchfor liquidspowder

3D motion mixer - TURBULA® - Willy A. Bachofen AG - batch / for liquids / powder
3D motion mixer - TURBULA® - Willy A. Bachofen AG - batch / for liquids / powder
3D motion mixer - TURBULA® - Willy A. Bachofen AG - batch / for liquids / powder - image - 2
3D motion mixer - TURBULA® - Willy A. Bachofen AG - batch / for liquids / powder - image - 3
3D motion mixer - TURBULA® - Willy A. Bachofen AG - batch / for liquids / powder - image - 4
3D motion mixer - TURBULA® - Willy A. Bachofen AG - batch / for liquids / powder - image - 5
3D motion mixer - TURBULA® - Willy A. Bachofen AG - batch / for liquids / powder - image - 6
Add to favorites
Compare this product


Characteristics

Technology
3D motion
Batch/continuous
batch
Product type
for liquids, powder
Other characteristics
stainless steel, compact, variable-speed, rotary, constant speed, hygienic, 3-shaft, touch pad control, 3-axis
Applications
for the chemical industry, for the food industry, for the pharmaceutical industry, for the cosmetics industry, laboratory, for electrotechnology, for the plastics industry, coating technology, for medium-viscosity liquids, for abrasive products, for coatings, for pyrotechnic, for ceramics, for sintered metal, for battery materials, for diamond tools
Engine power

0.55 kW, 0.75 kW, 1.1 kW
(0.75 hp, 1.02 hp, 1.5 hp)

Capacity

Min.: 0.1 l
(0.03 gal)

Max.: 55 l
(14.53 gal)

Empty weight

Min.: 58 kg
(127.9 lb)

Max.: 800 kg
(1,763.7 lb)

Description

3D shaker mixer for container volumes from 0.1-55 liters Reliable partner for your processes With the TURBULA® series you can produce compounds with the highest quality requirements and excellent reproducibility. The high mixing efficiency of these 3D shaker mixers results in the shortest mixing times and thus an extremely gentle mixing process. The mixers are easy to operate and enable hygienic work. You are flexible in your choice of mixing containers. These advantages make the TURBULA® a popular 3D shaker mixer in laboratory and production. Functionality The extraordinary efficiency of the TURBULA® mixers is based on the interaction of rotation, translation and inversion during the mixing process. The mixing container is set into a three-dimensional motion. The mixed material is put into a constantly changing and rhythmically pulsating state. In the shortest possible time, high-quality mixing results are achieved that meet the highest requirements. Features The TURBULA® mixers are used to produce homogeneous mixtures of powdery components with different specific weights and particle sizes. Dry-liquid and liquid-liquid mixtures are also possible. The mixing process takes place in a completely closed vessel and is therefore contamination-free. The TURBULA mixers can use containers of different sizes and shapes. • Simple operation and maximum reproducibility • Easy cleaning • No segregation • Easily accessible container holder for quick container changes
