Centrifugal pump Drain TP series
for wastewaterelectricsubmersible

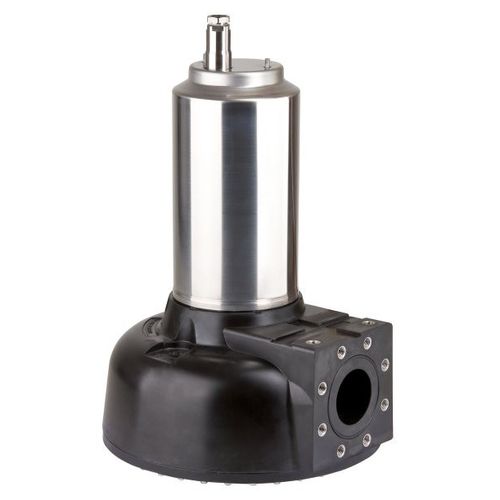

Centrifugal pump - Drain TP series - Wilo - for wastewater / electric / submersible
Centrifugal pump - Drain TP series - Wilo - for wastewater / electric / submersible
Add to favorites
Compare this product


Characteristics

Technology
centrifugal
Fluid
for wastewater
Operation
electric
Priming
submersible
Mobility
stationary
Domain
industrial
Applications
process, cooling, sewage, filling, booster, outlet
Material
stainless steel
Voltage
400 V
Protection level
IP68
Other characteristics
flange, close-coupled, dry, portable, corrosion-resistant, for well
Flow

Max.: 180 m³/h
(6,356.64001 ft³/h)

Min.: 0 m³/h
(0 ft³/h)

Pressure

Max.: 2.3 bar
(33.359 psi)

Min.: 1 bar
(14.504 psi)

Head

Max.: 22 m
(72'02" )

Min.: 0 m
(0'00" )

Power

Max.: 8.4 kW
(11.42 hp)

Min.: 1.7 kW
(2.31 hp)

Fluid temperature

Max.: 40 °C
(104 °F)

Min.: 3 °C
(37.4 °F)

Length

Max.: 478 mm
(19 in)

Min.: 428 mm
(17 in)

Width

Max.: 460 mm
(18.11 in)

Min.: 428 mm
(16.85 in)

Height

Max.: 745 mm
(29.33 in)

Min.: 688 mm
(27.09 in)

Weight

Max.: 60 kg
(132.28 lb)

Min.: 42 kg
(92.59 lb)

Description

Self-cooling motor for use in wet well and dry well installation Corrosion-resistant stainless steel motor housing made of 1.4404 Patented clogging-free hydraulics Longitudinally watertight cable inlet Low weight Design Submersible sewage pump for continuous duty for stationary and portable wet well installation, as well as stationary dry well installation. Application Pumping of Sewage containing faeces Pre-cleaned sewage without faeces and long-fibre components Process water Wastewater Equipment/function Thermal motor monitoring Leakage detection in the motor ATEX-certified Sheath current cooling Construction Submersible sewage pump as submersible monobloc unit for stationary wet well and dry well installation as well as portable wet well installation. Hydraulics The outlet on the pressure side is designed as DN 80 or DN 100 horizontal flange connections. Single-channel impellers are used as the impeller shape. Motor Surface-cooled motors are standard-equipped with clogging-free sheath current cooling. This ensures that heat is given off directly to the fluid. As a result, these units can be operated in immersed and non-immersed state for permanent or intermittent operation. In addition, the motor is equipped with a leakage detection unit and a thermal motor monitoring unit. A sealing chamber protects the motor from fluid ingress. The filling fluid used is potentially biodegradable and environmentally safe.
