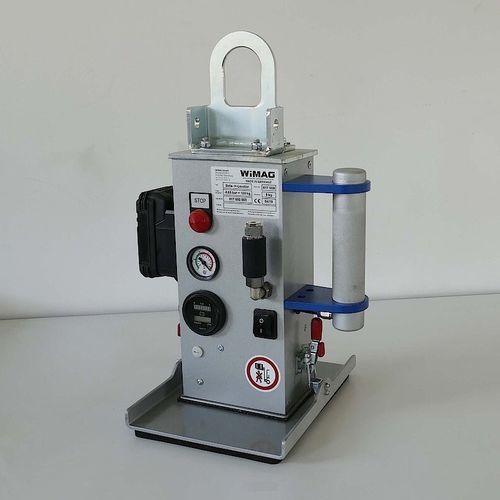

H-shaped vacuum lifting device 817 series

for sheet metalfor stone slabsfor plates

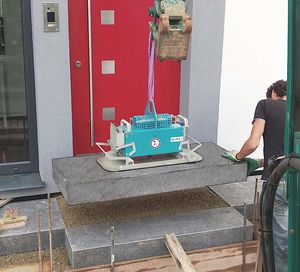

Beta H-Levator: the leight weight vacuum lifter with rechargeable battery for machine hoisting operation With the Beta H-Levator you can transport airtight panels effortlessly and safely in a horizontal position. Due to the use of interchangeable batteries, there are no disturbing cables. The low weight and easy handling allow ergonomic working. The powerful rechargeable battery allows continuous operation for approx. 3 hours. The charging time with the 220V/12V charger is approx. 2 hours. In accordance with EN 13155, the Beta H-Levator is designed for use on a crane, wheel loader or excavator and is equipped with the following safety devices: Warning light, pressure gauge, vacuum reservoir, dual actuation. Lifting is carried out close to the ground. When used on construction sites, safety chains must be attached. The standard suction plate can be easily released with the two quick-release clamps. Suction plates in other dimensions are available on request. The Beta H-Levator can be equipped with a remote control. A swivelling guide handle is available for safe guiding and operation in an upright position. Features • The battery-operated vacuum lifter for hoisting • For all absorbent materials up to 150 kg • Conforms to EN 13155 for use close to the ground
