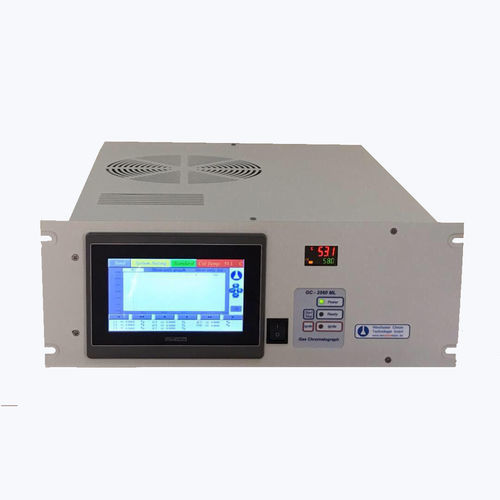

Gas chromatograph ML-OGC

processfor gas analysisfor LPG

The OGC is a gas chromatography equipped with FID detector and two Capillary column and multi port valve and it’s software and hardware is tuned for analyzing light hydrocarbon in rang of C1 to C5 or C1 to C8. The OGC has unique electronic gas controller for all support and carrier gases and it design to split C1 and C2 for better resolution, it adjusted in factory for analyzing C1 to C5 as default but can be modified by user via 7 inch touch screen controller. The OGC oven is control by double PID controller for stable temperature that cause highest repetition in retention time of peaks. The output support RS-232 and WITS protocol The default setting is for analyzing C1 to C5 but in custom setup by customer it can be second mode to analyzing C1 to C8.
