Bottle jack YT series

hydraulicfor construction site

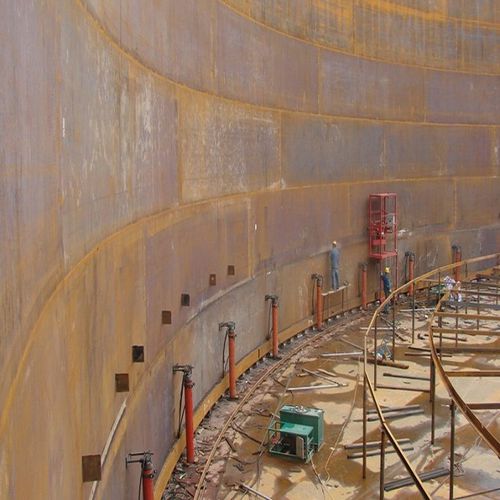

Top to Bottom Construction Hydraulic Lifter The system consists of power control system, hydraulic system and Level sensor monitoring system. Power control system includes one set general power work station, distribution cabinet and one Local electric cabinet. Level sensor system is equipped on each pump station to monitor the level situation simultaneously and also is able to monitor the level precision during lifting. Hydraulic system consists of several sub-pump stations and lifters. Each pump is with to lifter.Each pump station I with one set local power cabinet and it is able to separately lift and adjust the precision of plate fitting-up. Surely the system can be operated to lift simultaneously. Features and application Application 1.The equipment are mainly used for vertical tank top to bottom construction. 2.Also it can be used for mega work piece jacking or lifting. Features 1.The system consists of hydraulic pump station, cylinders, steel wire, and strokes. Easy to installation and operation; 2.The system utilizes PLC central control to handle lift. Each power pack is equipped with auxiliary balance device to guarantee the precision of simultaneously lifting. 3.Hydraulic lift pump station has subsidiary manual control and central control two operation models. The cylinder can be adjusted to lift separately or to lift with several others as one group, and multi groups can also be integrated to lift reach better precision and better welding effect.
