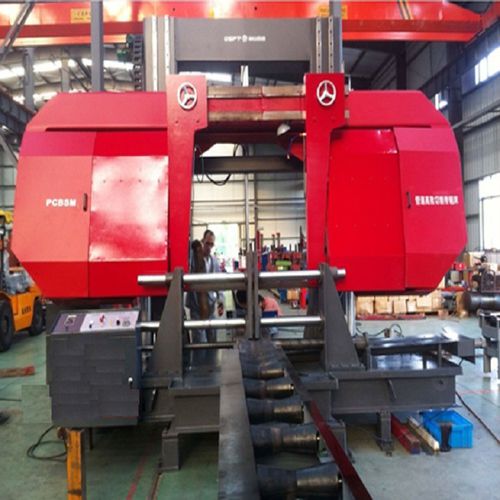

Band sawing machine

for steelfor pipeautomatic

Specifications: 1.pipe cutting band saw machine be widely used in projects with a majority of heavy wall thickness & standard wall thickness pipes. 2.High Speed Pipe Cutting Band Saw Machine; Pipe Cutting Sawing Machine. 3.Model: PCBSM-48A; PCBSM-32A; PCBSM-24A; PCBSM-16A. 4.Performance features:Pipe Cutting Machine, Pipe Band Saw Machine, Pipe Cutting Band Saw Machine, Band Saw Machine, Sawing Machine. 5.On-line Performance: good (designed as per the one line equipment of the production line). 6.Cutting Speed: ≤2Min /pipe cut (DN200 SCH40). 7.High efficient automatic pipe cutting with automatic self length measuring system. 8.Cutting quality: very good without length tolerance & Unlimited of pipe materials. 9.Application: be widely used in projects with a majority of heavy wall thickness & standard wall thickness pipes, especially for heavy wall thickness stainless steel pipe, duplex stainless steep pipe, alloy steel pipe & other non ferrous steel pipe and difficult to machining pipe materials with heavy wall thickness. Technical parameters: 1.Structure: horizontal and with two posts 2.Pipe diameter applicable:DN400-1200 ( φ 426-1219);DN200-800( φ 219-813);DN50~600(φ60~610); DN50~400 (φ60~426) 3.Materials applicable: carbon steel, alloy steel, stainless steel and cryogenic steel 4.Feeding speed: stepless speed adjustment 5.Speed of the band saw: 17-85m/min; 27, 52 or 78 m/min18, 42 or 68 m/min 6.Size of the band saw: 10800*67*1.6; 8880*67*1.6; 6700X*41*1.3; 4570X*34*1.1 7.Clamping mode: Both sides centering clamping automatically by hydraulic cylinder.
