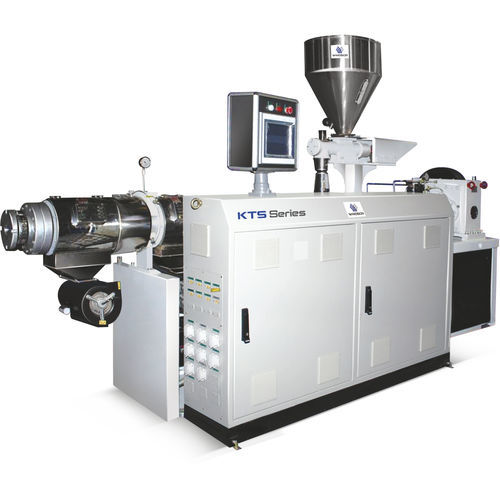

Tube extrusion line KTS series

for PVCtwin-screwPLC-controlled

Windsor Machines offers a range of Post Extrusion equipment to cover a wide spectrum of applications. Various equipments covers pipe size range from 5 mm to 800 mm OD, multi pipe extrusion as well as co-extrusion. Key Features: -Versatile design -28:1 L/D ratio -Output 170 kgs/hr for cPVC & 280 kgs/hr for UPVC -Imported bi-mettalic screw pair -Barrel with special coating -Triple chrome plated Die General Applicaitons: -Best suited for extreme climatic conditions -Hot & Cold water distribution systems -Industrial Fluids transportation pipe lines -Water & Waste water treatment plants -Chemical transportation pipe lines Advantages -High volume low pressure design ensures wider thickness range -Uniform melt distribution throughout the entire pipe circumference -Twin die heads for higher outputs in smaller diameters -Dual die with dual downstream for pipe sizes 20-110 mm & 63-200 mm -Extruders utilization from 80-100% even with smaller pipes Vacuum Sizing Tanks Intensive cooling provided to ensure high production rate Self cleaning spray nozzle Accurate vacuum control, water level control & temperature control Two vacuum chambers and motorized axial movement provided from VST-250 and above for quick startup and less wastage Manual slide rail arrangement for Axial and Transverse movement of the tank Dual vacuum spray tanks on common frame for dual pipe extrusion line Imported filters for online cleaning Air operated solenoid valves optionally Cyclone separator for vacuum optionally Aluminium cast lids
