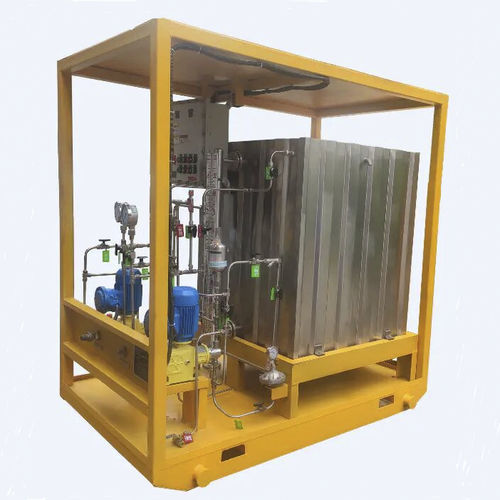

Pressure test equipment WY-1050W-J2

for burst testingcomputer-controlledstainless steel

The skid can be used for pressure test on the wellhead, underground and on the ground. The equipment uses compressed air as the power source to quickly press the test medium, and can display, print and save the pressure curve. Product Features ● Flow chart of boosting etched on the control panel surface of the booster unit. ● Adopts air-driven hydro pump as the boosting unit, which have pressure self-locking function and effectively avoid overpressure. ● Stainless steel material withstanding harsh conditions. ● The large-displacement low-pressure pump and the small-displacement high-pressure pump are configured to achieve functional control of different pressures, flows, and compression times. ● With digital remote recording, real-time data display monitoring, issuing experimental reports, historical data check functions. ● The electrical component interfaces are placed in the explosion-proof box. ● The uniquely designed rope-retractor structure enables the coiling of the pipeline to be more regular and at the same time preliminary cleaning.
