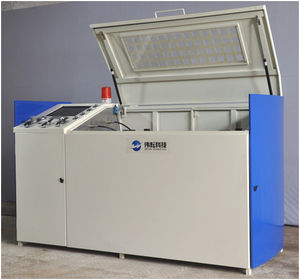

Pressure testing machine WY series

automatic

This is a comprehensive pressure tester for multi-media pressurization that can output 120 bar of high pressure hydraulic oil, 750 bar of high pressure nitrogen and 1050 bar of high pressure water. Various booster functions can be realized through panel operation. At the same time, we can configure the electrification system developed by our company to realize fully automatic functions. ● Flow chart of boosting etched on the control panel surface of the booster unit. ● Adopts air-driven hydro pump as the boosting unit, which have pressure self-locking function and effectively avoid overpressure. ● The large-displacement low-pressure pump and the small-displacement high-pressure pump are configured to achieve functional control of different pressures, flows, and compression times. ● The large-displacement low-pressure pump and the small-displacement high-pressure pump are configured to achieve functional control of different pressures, flows, and compression times. ● The electrical component interfaces are placed in the explosion-proof box ● The multi-outlet combination panel enables real-time detection of multiple media and multiple workpieces at the same time
