Piston pressure booster

nitrogen

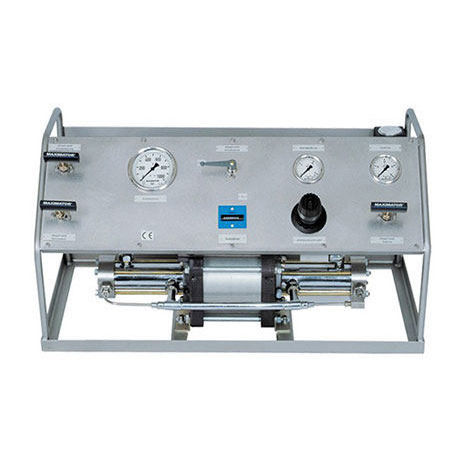

Nitrogen Gas Booster Compressor System. The compressor is covered in noise reduction paneling. The system will compress nitrogen gas from a boil-off supply (100 to 145 PSIG) to give a final outlet working pressure of upto15,000 psi. Description The system will compress nitrogen gas from a boil-off supply (100 to 145 PSIG) to give a final outlet working pressure of upto15,000 psi. At 11,000 psi the outlet flow rate produced is 40 scfm based on an air drive pressure of 90 PSIG and volume up to 140 scfm. At 15,000 psi the outlet flow rate will be reduced to 28 scfm with 90 PSIG air drive. Compressor Performance Available gas pressure Up to 145 psig Regulated pressure at booster inlet 72 psig Booster delivery pressure 5,000 psig Booster speed 1,460 rpm (approx) Booster capacity 40 scfm (nominal) Booster shaft power 19 kW Motor power 22 kW
